详细介绍

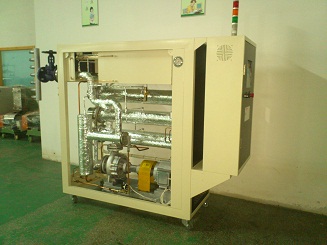

河北导热油炉是以导热油作为媒介的模温机，也可以称作油加热器、油温加热器、油循环控温机、电加热导热油炉。油温机本身设有一个储油箱，任务时导热油由储油箱进入系统，经循环泵打入到模具或其它需求控温的设备，导热油从被控温设备出来后，再前往到零碎，循环往复。导热油同过加热器升温，当感温探头探测到的媒体温度到达设定值时，加热器中止任务。当温度低于设定值时，加热器开端任务，当温度到达设定值后，又中止任务，如此循环往复。
油温机作用：
适用于辅佐消费工程塑料料、塑料制品。例如：尼龙、PC、亚克力的啤制品。油温机先预调到达注塑模具所需的温度，一次成型为优质产品，增加试模原料。模温机精确增加废料，提供消费及质量，乃注塑行业不可短少的工具。
| 高温油温机Standard oil temperature machine | ||||||||
| 特 点 FEATURES | ||||||||
| 1.管路防爆装置 | ||||||||
| Explosion/proof equipment for pipelines | ||||||||
| 2.吹气回油功能（选购） | ||||||||
| Air blowing and return oil function（optional) | ||||||||
| 3.回油温度显示表 | ||||||||
| Thermometer for return oil | ||||||||
| 4.开机自动排气功能 | ||||||||
| Automatic air-exhausting function after startup | ||||||||
| 5.加热功率切换功能 | ||||||||
| Switchover of heating power | ||||||||
| 6.热油BY-PASS泄压回路 | ||||||||
| BY-PASS pressure release loop for hot oil | ||||||||
| 7.多点温度控制机组可订作 | ||||||||
| Customizable multi-point temperature control unit | ||||||||
| 8.油泵马力和加热功率可订作 | ||||||||
| Customizable horsepower and heating power of oil pump | ||||||||
| 9.即实时冷却关机功能(选购) | ||||||||
| Instant cooling return oil shut-down function (optional) | ||||||||
| 10.控制方式: 采用进口微电脑或(选购)PLC控制 | ||||||||
| Control mode: imported microcomputer or PLC (optional) | ||||||||
| 11.温度控制范围: 进水温+40℃→300℃ | ||||||||
| Range of temperature control: +40℃→300℃ for incoming water | ||||||||
| 12.隔离式电器控制箱. 延长电器使用年限 | ||||||||
| Isolated electric box for longer services lives of electric appliances | ||||||||
| 13.RS485通讯功能, 实现自动化管理.(选购) | ||||||||
| RS485 communication function for automated management (optional) | ||||||||
| 14.304不锈钢一体管路,减少管阻及锈垢 | ||||||||
| 304 stainless steel integrated pipelines for less pipe resistance and rust | ||||||||
| 15.电器采用OMRON. FUJI. TE. LG.MOELLR.ABB.WEST | ||||||||
| Brands OMRON, FUJI, TE and LG.MOELLER.ABB and WEST for electric appliances | ||||||||
| 16.安全保护完善,故障显示, 维修.保养无需专业人员 | ||||||||
| Perfect safety protection, fault display, easy repair and maintenance even without professionals | ||||||||
| 规格SPEIFICATIONS | ||||||||
| 模型Model | 单位UNIT | TOB-10 | TOB-20 | YOB-30 | TOB-50 | TOB-75 | TOB-100 | TOB-150 |
| 温控范围 Control range | ℃ | 300℃ | ||||||
| 温控精度 Temp.control accuracy | ℃ | PID±1℃ | ||||||
| 电源 Power supply |
AC 3φ380V50HZ（or other)或其它 |
|||||||
| 传热媒体 Heat.transfer medium | 导热油CEAT TRANSFER OIL | |||||||
| 冷却方式 Cooling method | 间接冷却INDIRECT C00LING | |||||||
| 加热能量Heating capacity | KW | 12/18 | 18/24 | 24/30 | 36/50 | 60/70 | 80/100 | 110/150 |
| 泵浦马力（功率）Horsepower of Pump | HP/KW | 1/0.75 | 2/1.5 | 3/2.25 | 5/3.75 | 7.5/5.6 | 10/7.5 | 15/11 |
| 泵浦工作流量 Working flow of pump | L/MIN | 25 | 50 | 180 | 250 | 300 | 500 | 750 |
| 泵浦工作压力Working pressure of pump | KG/C㎡ | 2.0 | 2.5 | 2.8 | 3.2 | 3.8 | 4.9 | 4.0 |
| 最大电力消耗Maximum power consumption | KW | 13/19 | 19/26 | 26/27 | 29/50 | 66/68 | 72/100 | 106/132 |
| 警报功能 Alarm function | 缺相/缺水/超温/过载/反转 | |||||||
| 冷却水配管Cooing water pipework | INCH | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| 循环油配管Circulation oil pipe | INCH | 3/8x2 | 3/8x2 | 3/8x4 | 3/8x4 | 3/8x4 | 3/4x4 | (3/8x4)x2 |
| 外型尺寸 LxWxH | CM | 120x50x110 | 120x50x110 | 120x50x110 | 120x50x110 | 135x50x132 | 135x50x132 | 135x50x132 |
| 重量 Weighht | KG | |||||||
| 以上规格如有变更，恕不另行通知，特殊规格及多机一体机型可定制。Special design upon request | ||||||||
